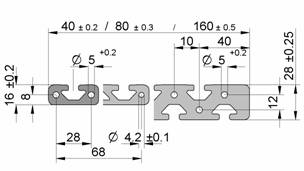

Series 40 Line 8Profiles have a common slot width of 8mm and a symmetrical 40mm shape. The uniform slot-form permits the integration of connecting elements and the fixing of accessories in any position. The 6.8mm centre hole for the front face can be tapped M8 and permits the fixing of connecting elements, cover caps adjustable feet and other accessories. The centre hole may be opened up to Ø13mm or M12 (not Profile E). |
   |
|||||||||||||||||
Allowable Tensile ForcesThese nominal loads include a minimum safety factor of 2.
|
 |
|||||||||||||||||
Profile DishEither side of slot a dishing of 0.2mm is set into the extrusion
|
 |
|||||||||||||||||
Extruded ProfileAlloy Al Mg Si 0,5 F25 Mechanical Details
|
||||||||||||||||||
| (Values apply in drawing direction) | |
| Min. tensile strength Rm | 245 N/mm2 |
| 0,2% Min. yield point Rp 0,2 | 195 N/mm2 |
| Elongation at rupture A5 or A10 | 10% or 8% |
| Modulus of elasticity E | approx. 70,000 N/mm2 |
| Brinell hardness | approx. 75 HB |
| Density | 2.7 kg/dm3 |
| Linear coeffient of expansion | 23.6x10-6 1/K |
Surface
Natural colors, matt (E6), anodises and consolidates
Scratch-proof and corrosion proof
Minimum layer thickness 10 µm. Layer hardness 250 - 350 HV
Other colors are available on request
Tolerences
Outside dimensions +/- 0,2 mm to 0,5 mm
Profile tolerences to DIN 17615, part 3
Profile length 6000 +60/-0 mm
